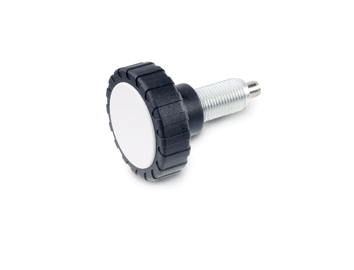

TH 7336.7 Knurled knobs with indexing plunger
Threaded body
Zinc-plated steel, blue passivated.
Plunger
AISI 303 stainless steel. Suggested matching hole in G7 tolerance.
Knob TH 7336
Plastic, polyamide based (PA) technpolymer, black matte.
Cover cap
Plastic, light grey.
Features and applications

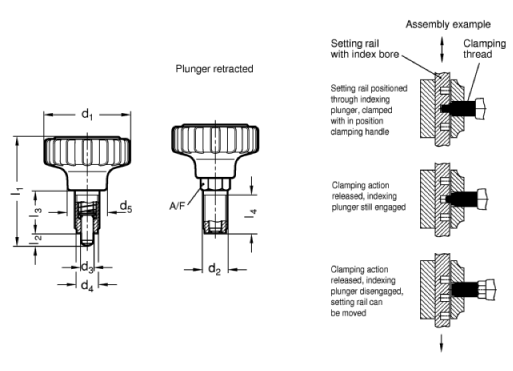

Knurled knobs with indexing plunger TH 7336.7 are used for positioning, securing and clamping adjusting elements at the same time.
The axial movement of the handle (pulling) pulls the indexing plunger from the engaged position against the spring force, with the knurled knob
at the same time remaining connected with form-lock to the clamping screw via a hexagonal element, allowing both clamping and releasing.
Product Selector Chart
| Standard Elements | Main dimensions | Spring pressure in N ≈ | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | d1 | d2 | d3 -0.02/-0.04 | d4 | d5 | l1 | l2 | l3 | l4 min. | A/F | Preload | Max. load | g |
| TH 7336.7-34-M10x1-5 | 34 | M10x1 | 5 | 8.6 | 15.5 | 44 | 5 | 19 | 17 | 10 | 7 | 17 | 15 |
| TH 7336.7-42-M12x1.5-6 | 42 | M12x1.5 | 6 | 9.9 | 19 | 52 | 6 | 21 | 19 | 12 | 9 | 24 | 41 |
| TH 7336.7-53-M12x1.5-6 | 53 | M12x1.5 | 6 | 9.9 | 22.5 | 59 | 6 | 21 | 19 | 12 | 9 | 24 | 60 |
| TH 7336.7-53-M16x1.5-8 | 53 | M16x1.5 | 8 | 13.9 | 22.5 | 68 | 8 | 28 | 26 | 16 | 11 | 30 | 90 |
