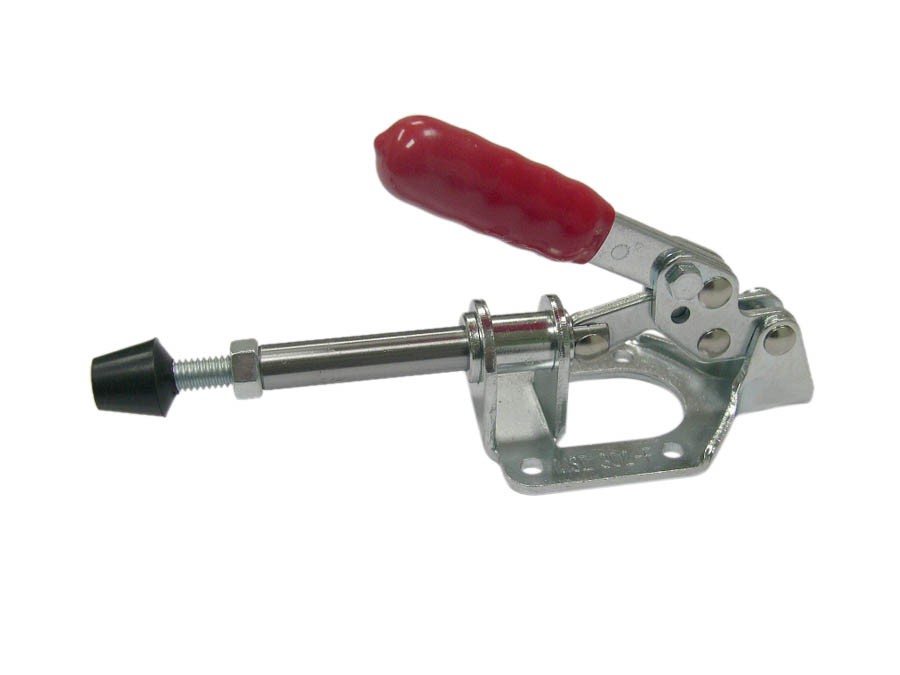

Push and pull toggle clamp
| Material | body: stainless steel , welding steel ,etc handle:plastic |
| type | JA-301-A,JA302D,JA-30282,etc |
| weight | determined by the type |
| Holding Capacity | 40Kg-6800KG |
| Handle move | 45-180 degree |
| Plunger Stroke | 16-238mm |
Feature:
1.fast and flexible loading and clamping with stable clamping force
2.safe and convenient to operate ,
3.high effciency
4.greatly reducing operation time for processing, assembling,fixing
5.clamping all kinds of parts.
Toggle Clamp is a simple Mechanism which holds instantly. the Toggle clamps consists of a handle to operate
Toggle Clamp is a simple
Mechanism which holds instantly. the Toggle clamps consists of a handle to
operate, a clamping Arm to Reach the workpiece, linkage for multiplying the
applied force, and a base for mounting at the workplace on it's
base.
The handle is
operated which thereby moves the clamping arm to hold the work piece. A required
work force is achieved and exerted on the work piece. Under this action the
Toggle clamp Holds the work piece firmly and positively.
