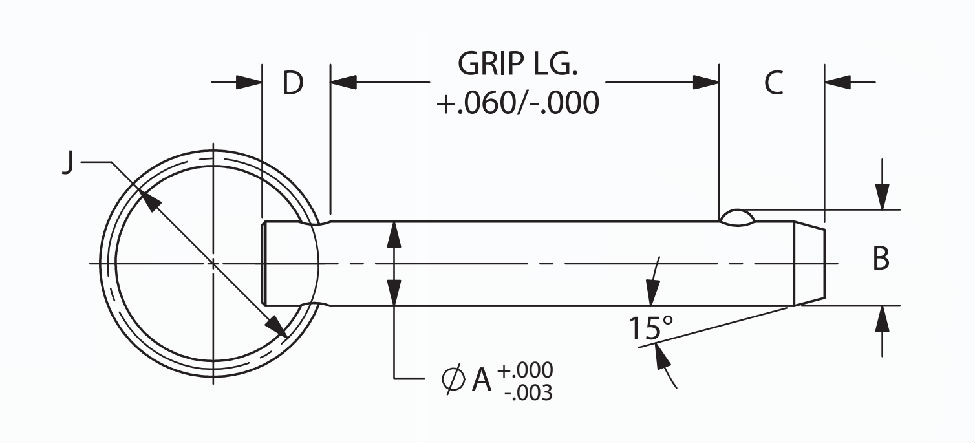

Detent Ring Pin
Detent Ring Pin
Features:
1. It can be Auto-defense and make the ball of the pin head be retractable by pressing the
button of the handle, at this time you can let the quick release pin be passed through the
pin hole quickly;
2. When you release the button, the ball will pop-up, quick release pin will can't be pull-
out;
3. High precision, The tolerance of diameter and grip length are very strict;
4. The coverage of application is wide, according to the environment you can choose to use
high-strength alloy steel and stainless steel material;
5. According to the space conditions of handle you can choose L-Model, T-Model, Button Model or Ring-Model and so on.
Inch | ||||||||||||
Pin Diameter(mm) | Grip Length(mm)(Stainless Steel) | |||||||||||
0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
3/16 | * | * | * | * | * | * | * | * | * | * | * | * |
1/4 | * | * | * | * | * | * | * | * | * | * | * | * |
5/16 | * | * | * | * | * | * | * | * | * | * | * | * |
3/8 | * | * | * | * | * | * | * | * | * | * | * | * |
7/16 | * | * | * | * | * | * | * | * | * | * | * | * |
1/2 | * | * | * | * | * | * | * | * | * | * | * | * |
9/16 | * | * | * | * | * | * | * | * | * | * | * | * |
5/8 | * | * | * | * | * | * | * | * | * | * | * | * |
3/4 | * | * | * | * | * | * | * | * | * | * | * | * |
7/8 | * | * | * | * | * | * | * | * | * | * | * | * |
1 | * | * | * | * | * | * | * | * | * | * | * | * |
Pin Diameter(mm) | Grip Length(mm)(Alloy Steel) | |||||||||||
1 | 0.75 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 4 | 5 | 6 | |
3/16 | * | * | * | * | * | * | * | * | * | * | * | * |
1/4 | * | * | * | * | * | * | * | * | * | * | * | * |
5/16 | * | * | * | * | * | * | * | * | * | * | * | * |
3/8 | * | * | * | * | * | * | * | * | * | * | * | * |
7/16 | * | * | * | * | * | * | * | * | * | * | * | * |
1/2 | * | * | * | * | * | * | * | * | * | * | * | * |
9/16 | * | * | * | * | * | * | * | * | * | * | * | * |
5/8 | * | * | * | * | * | * | * | * | * | * | * | * |
3/4 | * | * | * | * | * | * | * | * | * | * | * | * |
7/8 | * | * | * | * | * | * | * | * | * | * | * | * |
1 | * | * | * | * | * | * | * | * | * | * | * | * |
