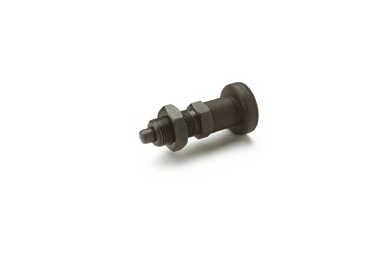

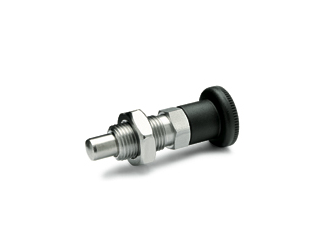

TH 617 Indexing plungers
Threaded body
Black-oxide steel.
Plunger
Black-oxide steel with hardened end. Suggested matching hole in H7 tolerance.
Locking nut
Black-oxide steel.
"Push/Pull" knurled knob
High resilience polyamyde based (PA) technopolymer, black colour, matte finish. Resistant to solvents, oils, greases and other chemical agents.
Standard executions available
- Version A: with knob, without locking nut, ISO 8675.
- Version AK: with knob and locking nut.
- Version G: without knob, without locking nut.
- Version GK: without knob, with locking nut, ISO 8675.
Version G and GK, without knob, are provided with threaded drive rod for combination with knobs on customer's request
or to join the rod to an operating mechanism of the machine.
Applications
GN 617 indexing plungers are used where positioning operations are required

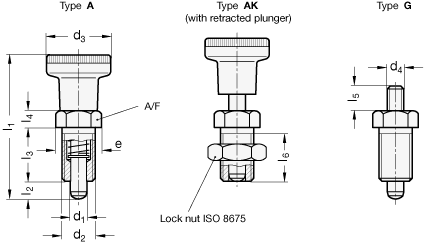

| Standard Elements | Main dimensions | Spring pressure in N ≈ | Weight | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | d1 -0.02/-0.04 | d2 | d3 | d4 | e | l1 ≈ | l2 min. | l3 | l4 | l5 | l6 min. | A/F | Preload | Max. load | g |
| TH 617-5-A | 5 | M10x1 | 21 | - | 13.8 | 45 | 5 | 17 | 5 | - | 15 | 12 | 7 | 17 | 18 |
| TH 617-6-A | 6 | M12x1.5 | 25 | - | 16.2 | 54.5 | 6 | 20 | 6 | - | 17 | 14 | 9 | 24 | 32 |
| TH 617-8-A | 8 | M16x1.5 | 31 | - | 21.9 | 69 | 8 | 26 | 8 | - | 23 | 19 | 11 | 30 | 70 |
| TH 617-10-A | 10 | M20x1.5 | 31 | - | 25.4 | 80 | 10 | 33 | 10 | - | 30 | 22 | 19 | 45 | 110 |
| TH 617-5-AK | 5 | M10x1 | 21 | - | 13.8 | 45 | 5 | 17 | 8 | - | 15 | 12 | 7 | 17 | 24 |
| TH 617-6-AK | 6 | M12x1.5 | 25 | - | 16.2 | 54.5 | 6 | 20 | 6 | - | 17 | 14 | 9 | 24 | 42 |
| TH 617-8-AK | 8 | M16x1.5 | 31 | - | 21.9 | 69 | 8 | 26 | 8 | - | 23 | 19 | 11 | 30 | 90 |
| TH 617-10-AK | 10 | M20x1.5 | 31 | - | 25.4 | 80 | 10 | 33 | 10 | - | 30 | 22 | 19 | 45 | 143 |
| TH 617-5-G | 5 | M10x1 | 21 | M5 | 13.8 | 45 | 5 | 17 | 5 | 6 | 15 | 12 | 7 | 17 | 15 |
| TH 617-6-G | 6 | M12x1.5 | 31 | M8 | 25.4 | 80 | 10 | 33 | 10 | 12 | 30 | 22 | 19 | 45 | 25 |
| TH 617-8-G | 8 | M16x1.5 | 31 | M8 | 21.9 | 69 | 8 | 26 | 8 | 12 | 23 | 19 | 11 | 30 | 53 |
| TH 617-10-G | 10 | M20x1.5 | 31 | M8 | 25.4 | 80 | 10 | 33 | 10 | 12 | 30 | 22 | 19 | 45 | 98 |
| TH 617-5-GK | 5 | M10x1 | 21 | M5 | 13.8 | 45 | 5 | 17 | 5 | 6 | 15 | 12 | 7 | 17 | 22 |
| TH 617-6-GK | 6 | M12x1.5 | 31 | M8 | 25.4 | 80 | 10 | 33 | 10 | 12 | 30 | 22 | 19 | 45 | 35 |
