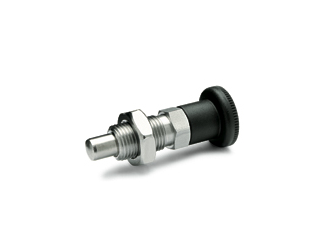

TH 817-NI indexing plunger

Body

AISI 303 stainless steel.

Plunger

AISI 303 ground nickel-plated stainless steel. Suggested matching hole in H8 tolerance.

Locking nut

AISI 304 stainless steel (for type BK, CK, GK).

Knurled knob

High impact strength polyamide based (PA) technopolymer, black colour, matte finish (type B, BK).

Resistant to solvents, oils, greases and other chemical agents.

Knurled keyed knob

High impact strength special technopolymer, black colour, matte finish (standardversion), red RAL 3000 RT.

Resistant to solvents, oils, greases and other chemical agents.

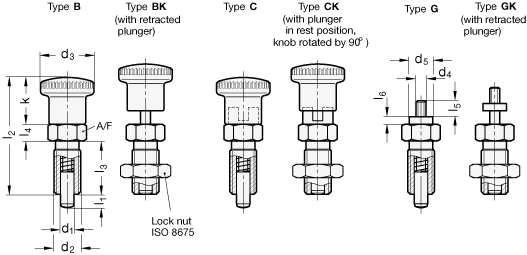

Standard versions available

- Type B: with knob, without locking nut.

- Type BK: with knob and locking nut, ISO 8675.

- Type C: with knob, without locking nut.

- Type CK: with knob and locking nut, ISO 8675.

Related Products

Product Selector Chart

GN 817-NI - Indexing plungers

<td style="margin: 0px; padding-right: 0px; padding-left: 0px; outline: 0px; bord

Standard Elements	Main dimensions													Spring pressure in N ≈		Weight
Description	d_{1 -0.02/-0.04}	l_{1 min.}	d₂	d₃	d₄	d₅	k	l₂	l₃	l₄	l₅	l₆	A/F	Preload	Max. load	g
TH 817-4-4-B-NI	4	4	M8x1	16	-	-	14	35	16	5	-	-	10	4.5	12	11
TH 817-4-6-B-NI	4	6	M8x1	16	-	-	14	35	16	5	-	-	10	4	12.5	11
TH 817-5-5-B-NI	5	5	M10x1	19	-	-	16	40	18	6	-	-	12	5	15	19
TH 817-5-8-B-NI	5	8	M10x1	19	-	-	16	40	18	6	-	-	12	5	18	19
TH 817-6-6-B-NI	6	6	M12x1.5	23	-	-	20	48	22	6	-	-	14	6.5	19	32
TH 817-6-9-B-NI	6	9	M12x1.5	23	-	-	20	48	22	6	-	-	14	6	25	32
TH 817-8-8-B-NI	8	8	M16x1.5	28	-	-	24	58	26	8	-	-	17	8.5	26	68
TH 817-8-12-B-NI	8	12	M16x1.5	28	-	-	24	58	26	8	-	-	17	8.5	28	67
TH 817-10-12-B-NI	10	12	M16x1.5	28	-	-	24	58	26	8	-	-	17	9.5	38	69
TH 817-12-15-B-NI	12	15	M20x1.5	28	-	-	24	67	33	10	-	-	22	11.5	40	117
TH 817-4-4-BK-NI	4	4	M8x1	16	-	-	14	35	16	5	-	-	10	4.5	12	12
TH 817-4-6-BK-NI	4	6	M8x1	16	-	-	14	35	16	5	-	-	10	4	12.5	12
TH 817-5-5-BK-NI	5	5	M10x1	19	-	-	16	40	18	6	-	-	12	5	15	20
