TH 615 ball spring plunger
Threaded body
bearing steel, screwdriver slotted head.
Ball
Steel hardened.
Spring
AISI 631 stainless steel.
- Version K: with normal end-force.
- Version KS (body with 2 longitudinal markings): with heavy end-force.
Product Selector Chart

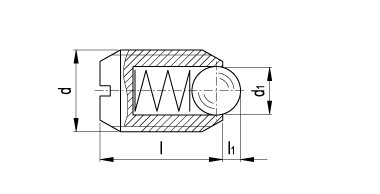

| Standard Elements | Main dimensions | Spring pressure | Weight | ||||
|---|---|---|---|---|---|---|---|
| Description | d 6g | d1 | l ±0.1 | l1 | Preload [N~] | Max. load [N~] | g |
| TH 615-M3-K | M3 | 1.5 | 7 | 0.4 | 3 | 4.5 | 1 |
| TH 615-M4-K | M4 | 2.5 | 9 | 0.8 | 6 | 14.5 | 1 |
| TH 615-M5-K | M5 | 3 | 12 | 0.9 | 8 | 14 | 1 |
| TH 615-M6-K | M6 | 3.5 | 14 | 1 | 11 | 18 | 2 |
| TH 615-M8-K | M8 | 4.5 | 16 | 1.5 | 18 | 31 | 4 |
| TH 615-M10-K | M10 | 6 | 19 | 2 | 24 | 45 | 7 |
| TH 615-M12-K | M12 | 8 | 22 | 2.5 | 26 | 49 | 10 |
| TH 615-M16-K | M16 | 10 | 24 | 3.5 | 41 | 86 | 24 |
| TH 615-M20-K | M20 | 12 | 30 | 4.5 | 56 | 111 | 43 |
| TH 615-M24-K | M24 | 15 | 34 | 5.5 | 81 | 151 | 70 |
| TH 615-M5-KS | M5 | 3 | 12 | 0.9 | 15 | 22 | 1 |
| TH 615-M6-KS | M6 | 3.5 | 14 | 1 | 19 | 28 | 2 |
| TH 615-M8-KS | M8 | 4.5 | 16 | 1.5 | 36 | 62 | 4 |
| TH 615-M10-KS | M10 | 6 | 19 | 2 | 57 | 104 | 7 |
| TH 615-M12-KS | M12 | 8 | 22 | 2.5 | 61 | 110 | 10 |
| TH 615-M16-KS | M16 | 10 | 24 | 3.5 | 68 | 142 | 24 |
| TH 615-M20-KS | M20 | 12 | 30 | 4.5 | 84 | 166 | 43 |
| TH 615-M24-KS | M24 | 15 | 34 | 5.5 | 127 | 237 | 70 |
