TH 614 Smooth ball spring plungers
Body
- Acetal resin based (POM) technopolymer. Resistant to solvents, oils, greases and other chemical agents (execution KU and KD).
- Brass (execution MS).
Ball and spring
- Execution KU: hardened stainless steel ball, stainless steel spring.
- Execution KD: technopolymer ball, stainless steel spring.
- Execution MS: hardened stainless steel ball, stainless steel spring.
Working temperature
From -30°C to +50°C (for execution KU and KD).
Accessories
Holders for spring plungers type TH 614.1 to optimise the use of GN 614 smooth ball spring plungers.

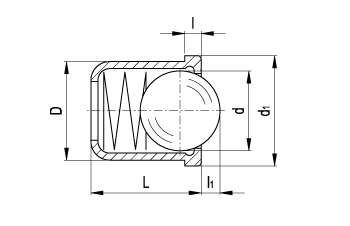

Product Selector Chart
| Standard Elements | Main dimensions | Spring pressure | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Description | D +0.1 | L | d | d1 | l ±0.1 | l1 | Preload [N~] | Max. load [N~] | g |
| TH 614-3-KU | 3 | 4 | 2.4 | 3.5 | 0.6 | 0.6 | 1.7 | 3.6 | 1 |
| TH 614-4-KU | 4 | 5 | 3 | 4.6 | 1 | 0.8 | 2.5 | 6.5 | 1 |
| TH 614-5-KU | 5 | 6 | 4 | 5.6 | 1 | 1 | 4.5 | 9 | 1 |
| TH 614-6-KU | 6 | 7 | 5 | 6.5 | 1 | 1.6 | 6.5 | 13 | 1 |
| TH 614-8-KU | 8 | 9 | 6.5 | 8.5 | 1 | 1.9 | 8 | 18 | 2 |
| TH 614-10-KU | 10 | 13 | 8.5 | 11 | 1.5 | 2.4 | 12 | 23 | 3 |
| TH 614-12-KU | 12 | 16 | 10 | 13 | 1.5 | 3.3 | 13 | 25 | 5 |
| TH 614-4-KD | 4 | 5 | 3 | 4.6 | 1 | 0.8 | 2.5 | 6.5 | 1 |
| TH 614-5-KD | 5 | 6 | 4 | 5.6 | 1 | 1 | 4.5 | 9 | 1 |
| TH 614-6-KD | 6 | 7 | 5 | 6.5 | 1 | 1.6 | 6.5 | 13 | 1 |
| TH 614-8-KD | 8 | 9 | 6.5 | 8.5 | 1 | 1.9 | 8 | 18 | 2 |
| TH 614-10-KD | 10 | 13 | 8.5 | 11 | 1.5 | 2.4 | 12 | 23 | 3 |
| TH 614-12-KD | 12 | 16 | 10 | 13 | 1.5 | 3.3 | 13 | 25 | 5 |
| TH 614-3-MS | 3 | 4 | 2.4 | 3.5 | 0.6 | 0.6 | 1.8 | 3.5 | 1 |
| TH 614-4-MS | 4 | 5 | 2.5 | 4.6 | 1 | 0.8 | 2.5 | 6 | 1 |
| TH 614-5-MS | 5 | 6 | 3.5 | 5.6 | 1 | 1 | 3 | 6.5 | 1 |
| TH 614-6-MS | 6 | 7 | 4.5 | 6.5 | 1 | 1.6 | 5.5 | 11.5 | 1 |
| TH 614-8-MS | 8 | 9 | 6 | 8.5 | 1 | 1.9 | 7 | 12.5 | 2 |
